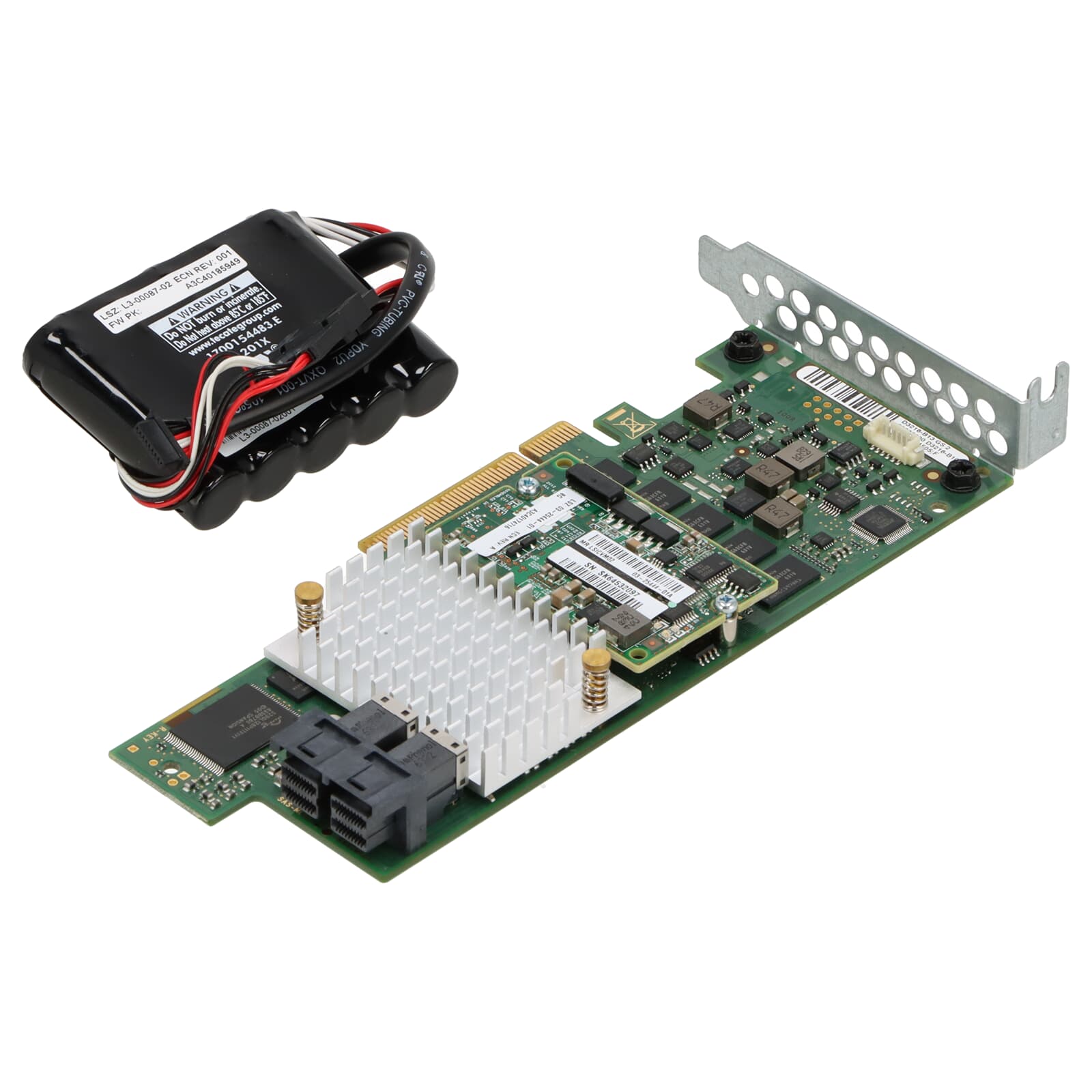

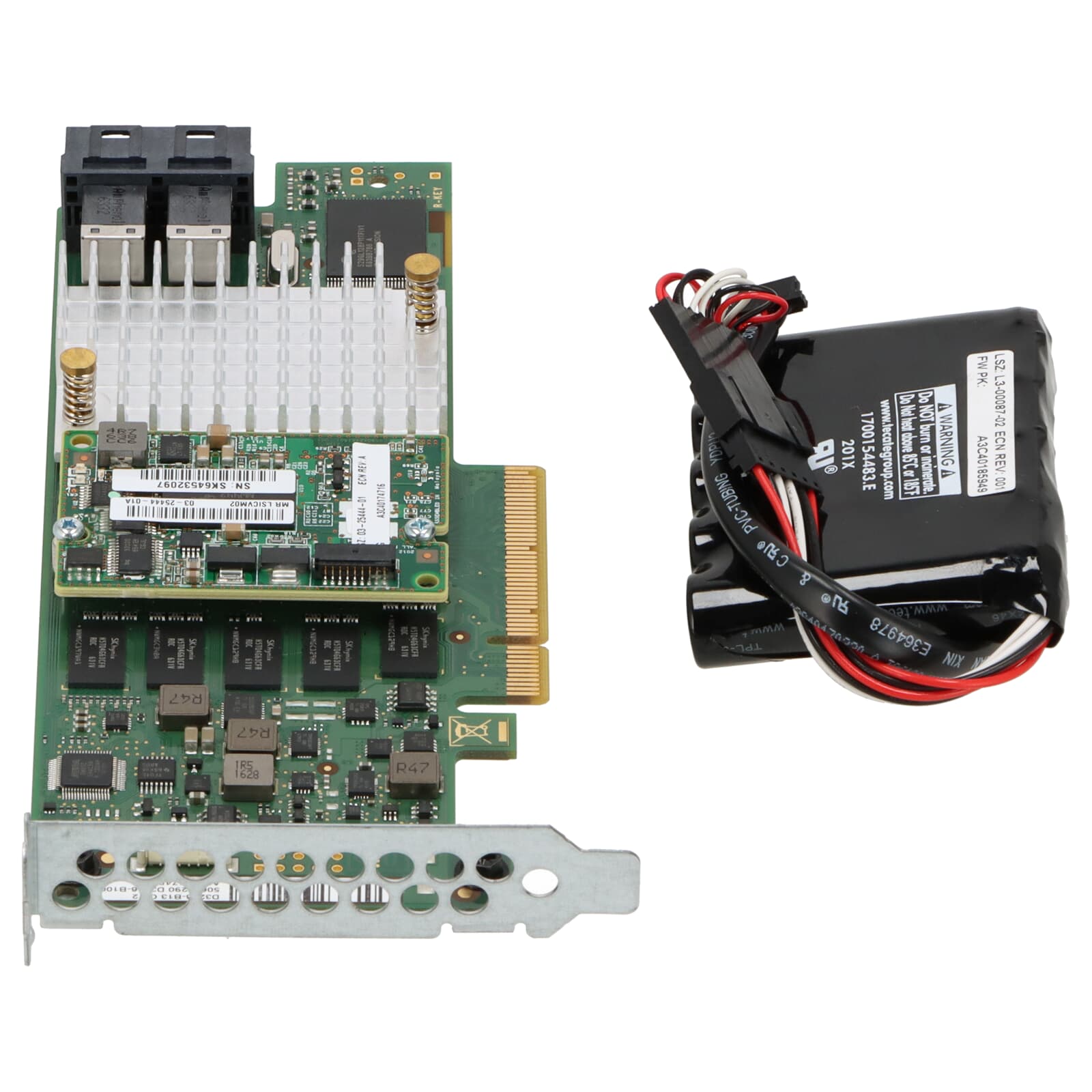

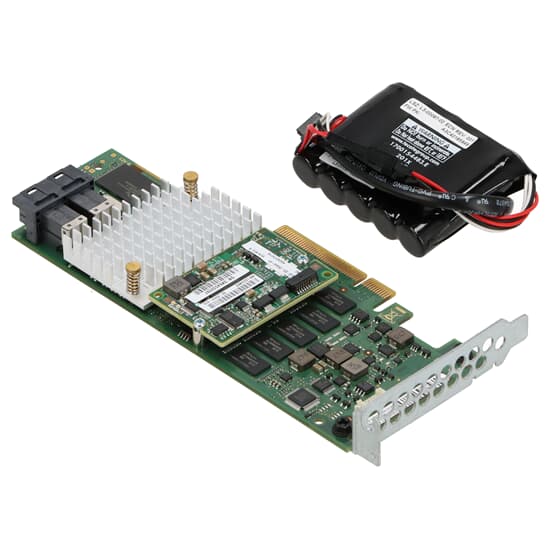

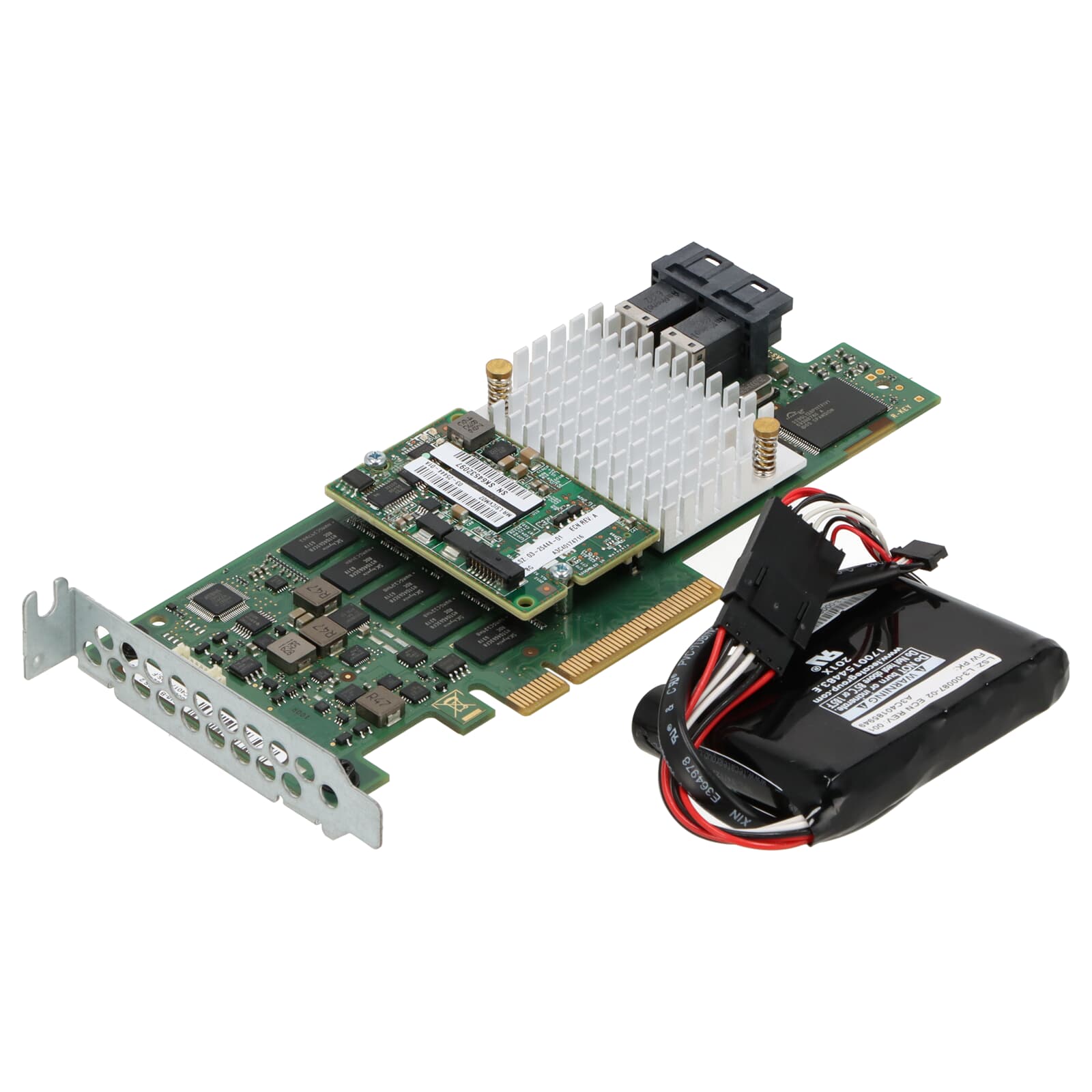

Fujitsu RAID controller PRAID EP420i 8-CH 2GB SAS 12G A3C40174505
refurbished
Item ID: 50017901
Technical specifications
Device type
RAID controller
Controller interface type
SAS 12G/SATA 6G
Number of channels
8
Battery module
Yes
Data transfer rate in MByte/s
1200
Low Profile
Yes
Max. number of peripheral devices
8
PCI variant
PCI-E 3.0 x8
Buffer size (MB)
2048
Slot compatibility
at least PCI-E x8
RAID
RAID functionality
Yes
RAID level 0
Yes
RAID Level 1
Yes
RAID Level 5
Yes
RAID level 6
Yes
RAID level 10
Yes
RAID level 50
Yes
RAID level 60
Yes
Connections
HD Mini-SAS (SFF-8643) 4x int. 36-pin
2
PRIMERGY CX2550 M2
PRIMERGY CX2570 M2
PRIMERGY RX1330 M2
PRIMERGY RX1330 M3
PRIMERGY RX1330 M4
PRIMERGY RX2510 M2
PRIMERGY RX2530 M1
PRIMERGY RX2530 M2
PRIMERGY RX2540 M1
PRIMERGY RX2540 M2
PRIMERGY RX2560 M1
PRIMERGY RX2560 M2
PRIMERGY RX300 S8
PRIMERGY RX4770 M1
PRIMERGY RX4770 M2
PRIMERGY RX4770 M3
PRIMERGY SX960 S1
PRIMERGY TX1320 M2
PRIMERGY TX1320 M3
PRIMERGY TX1330 M2
PRIMERGY TX1330 M3
We will be happy to check other compatibilities for you!
