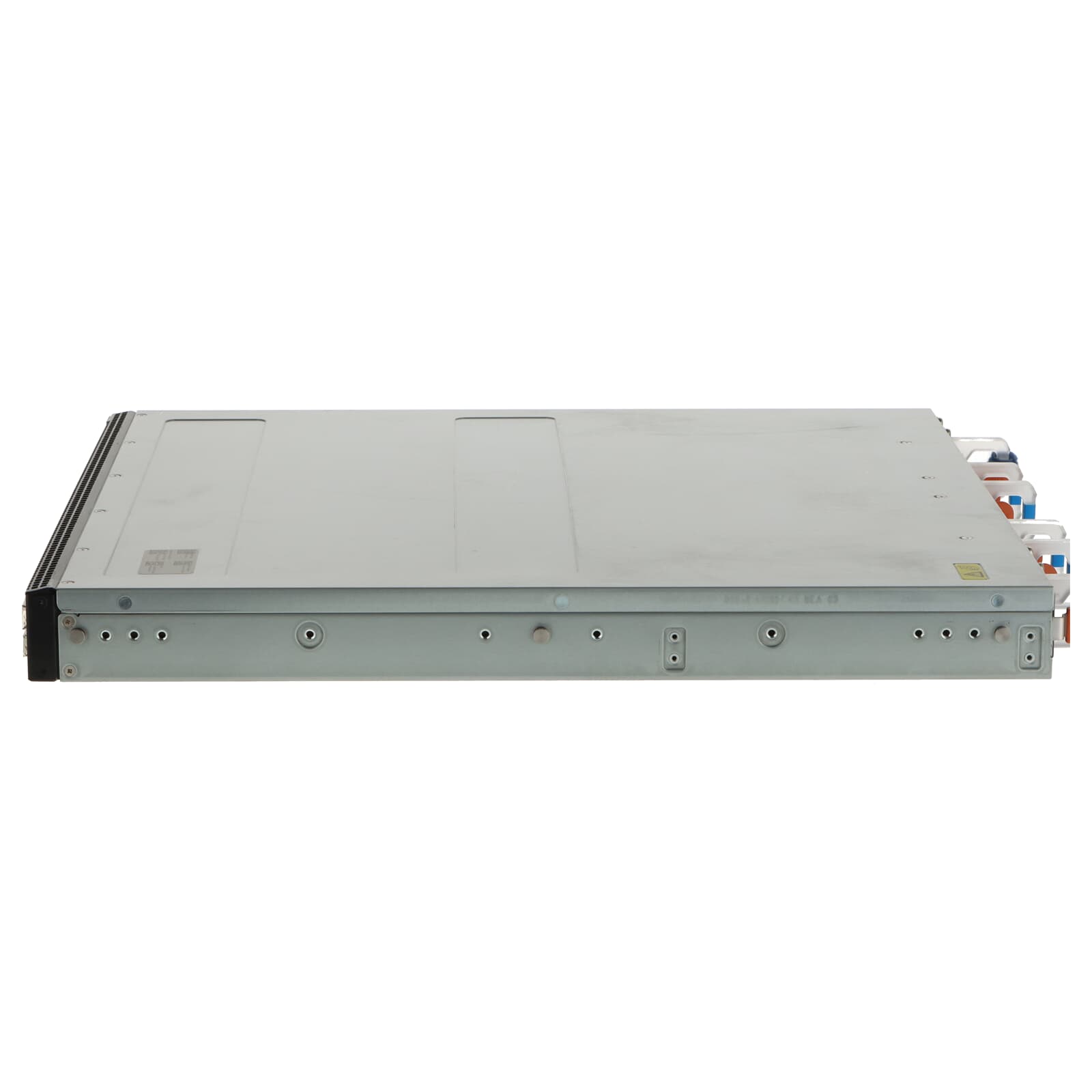

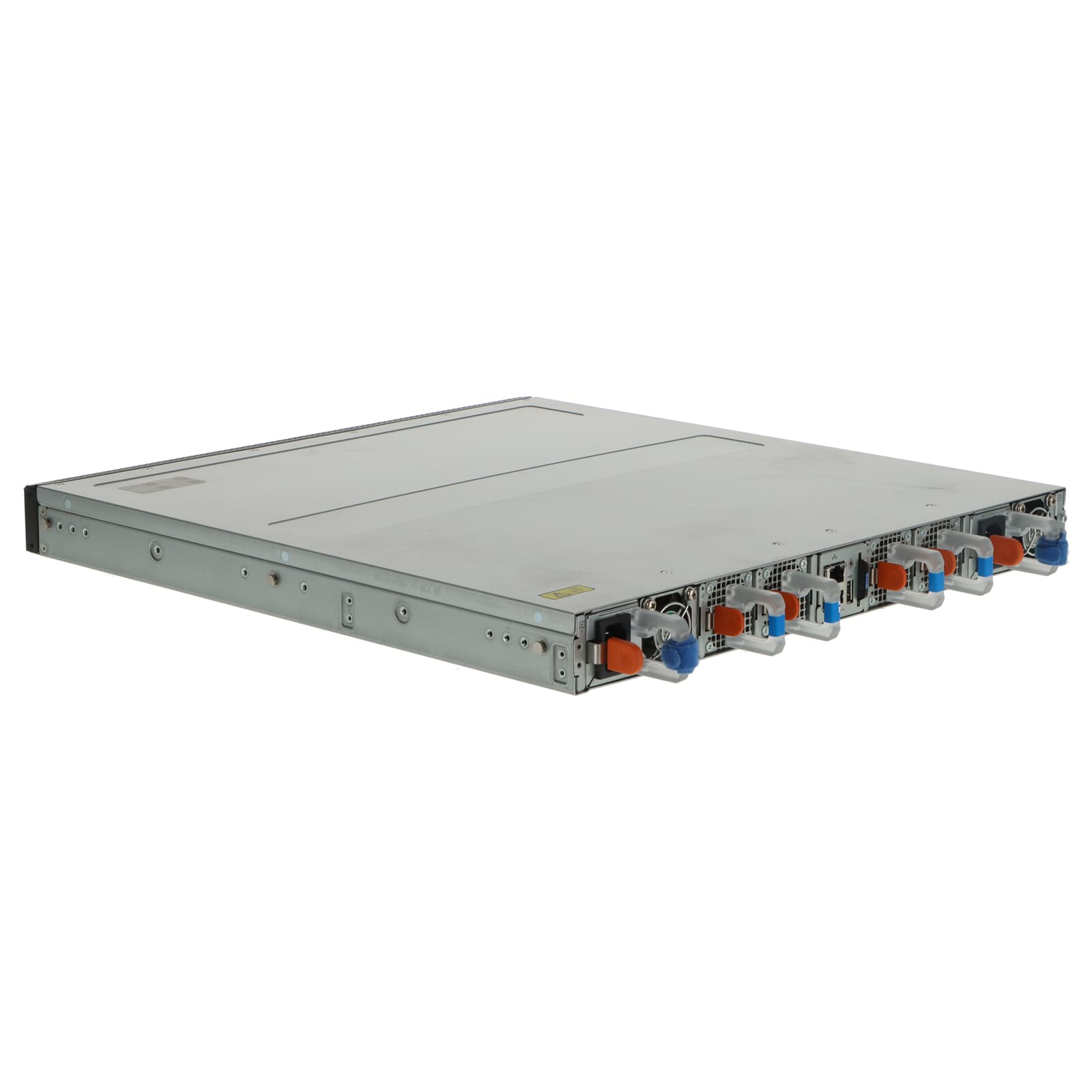

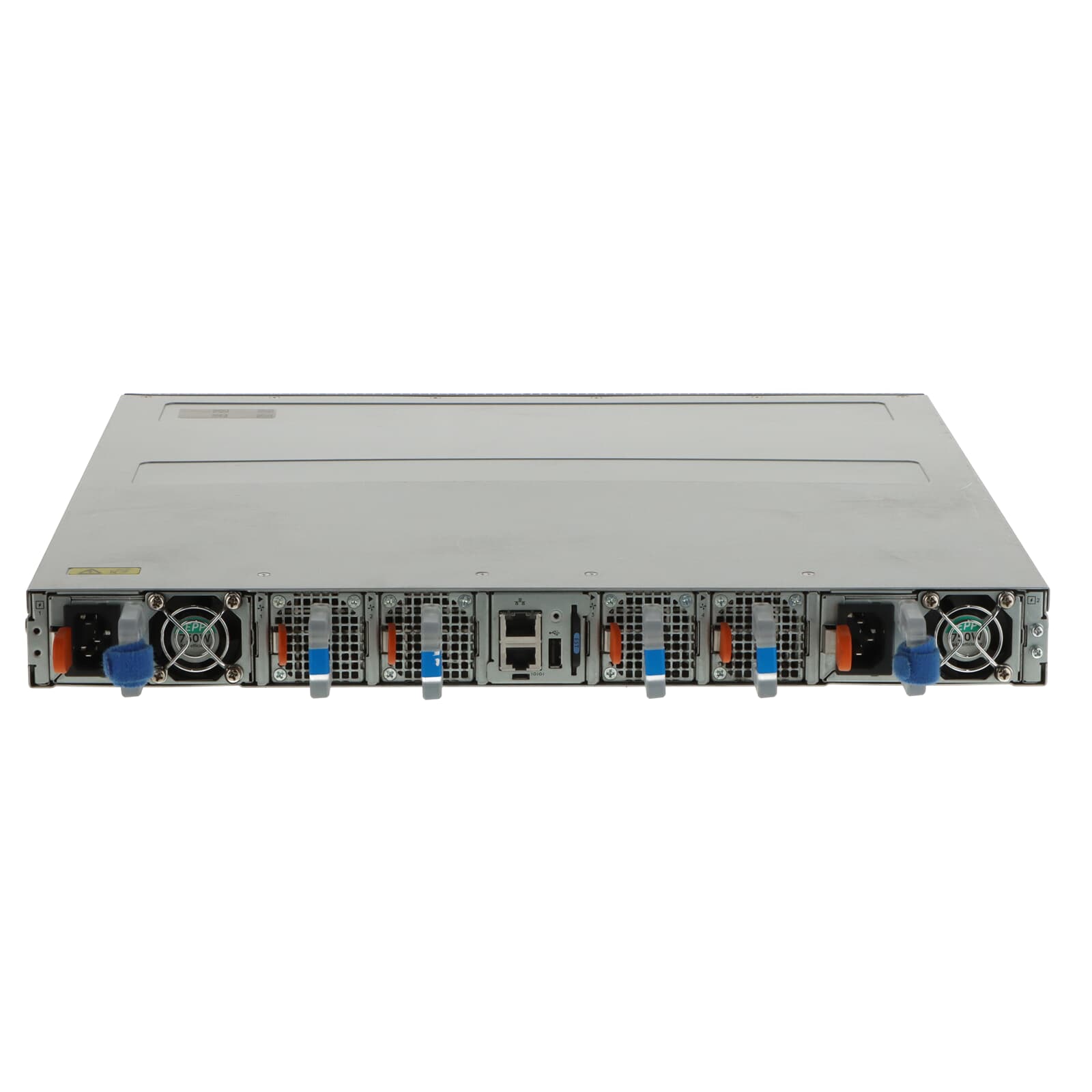

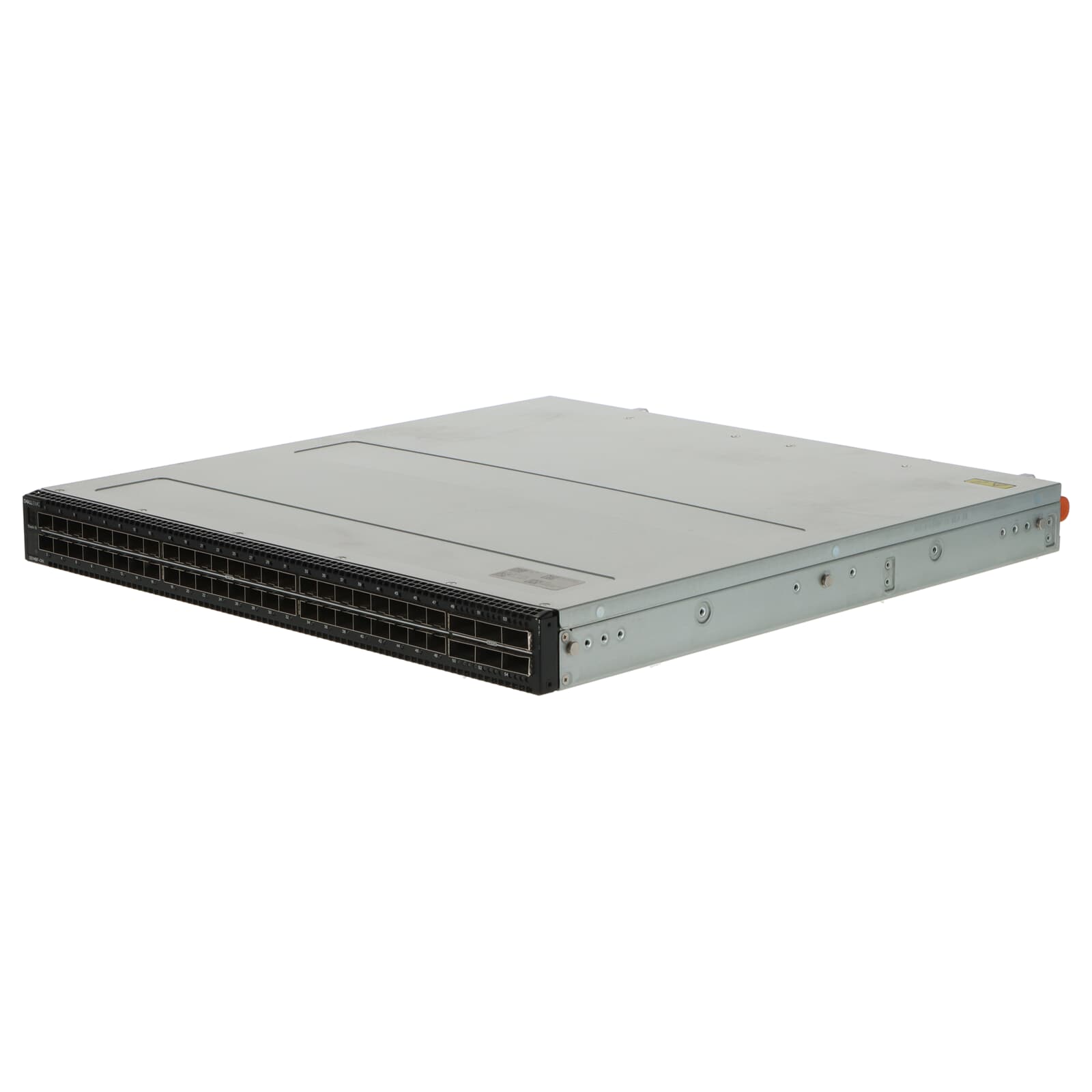

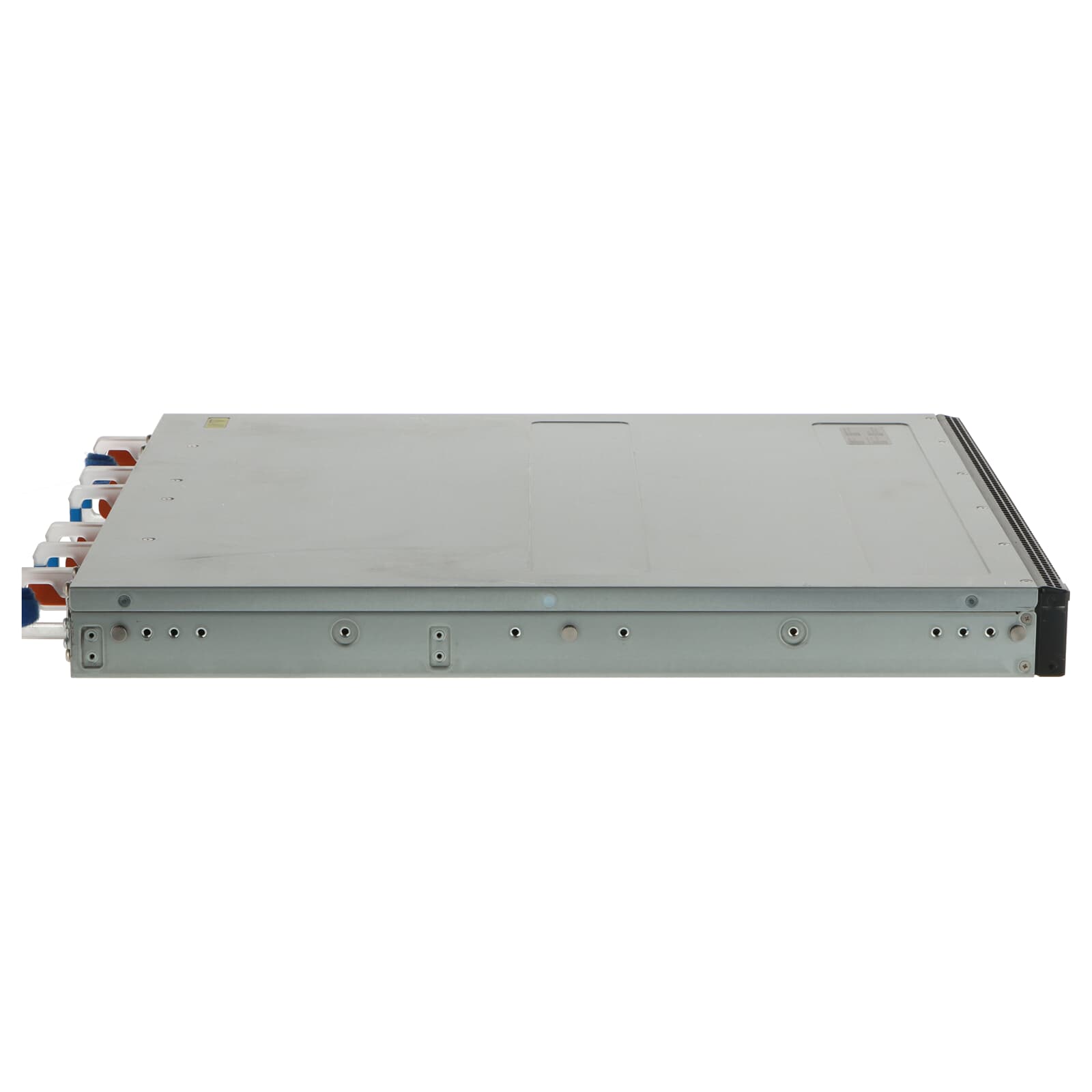

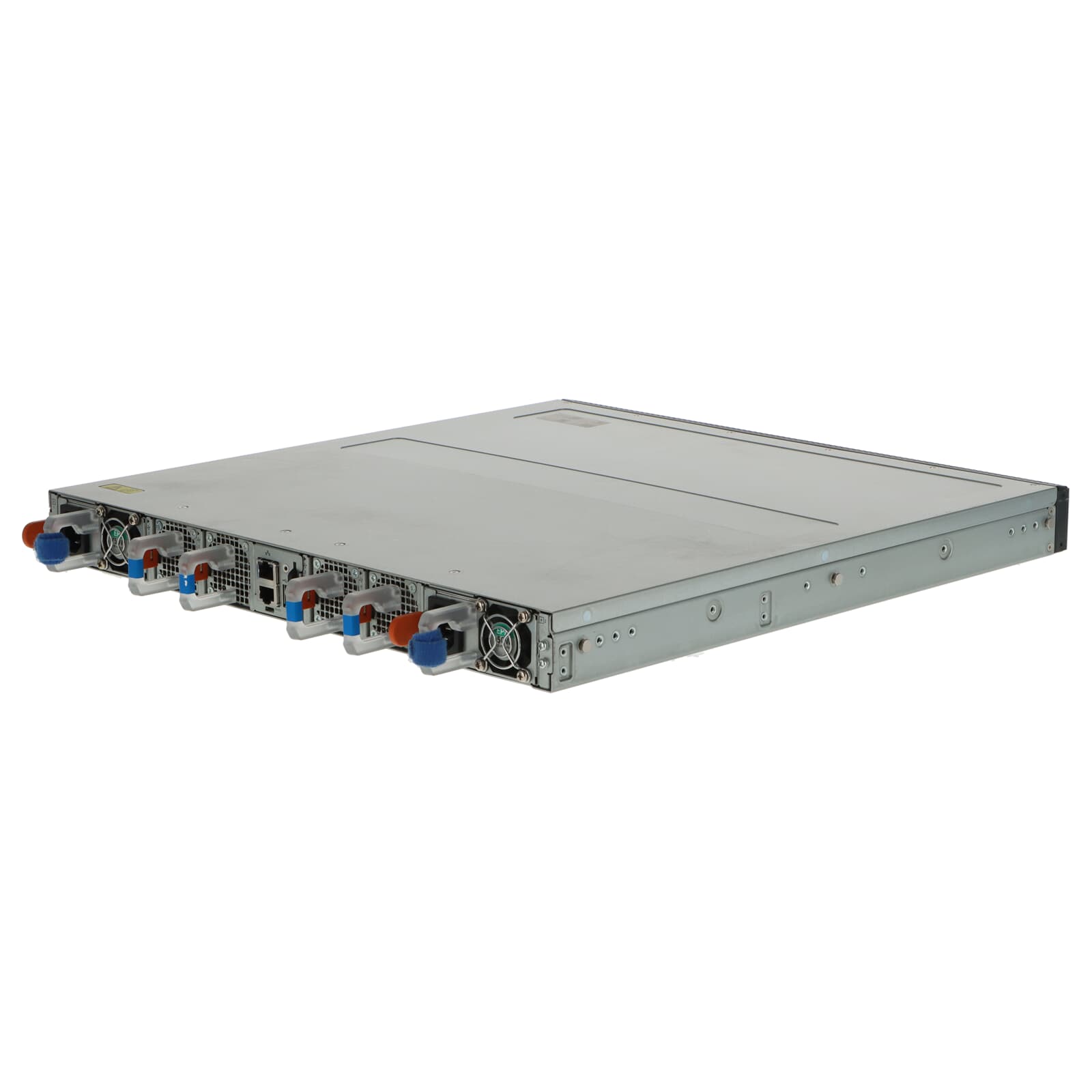

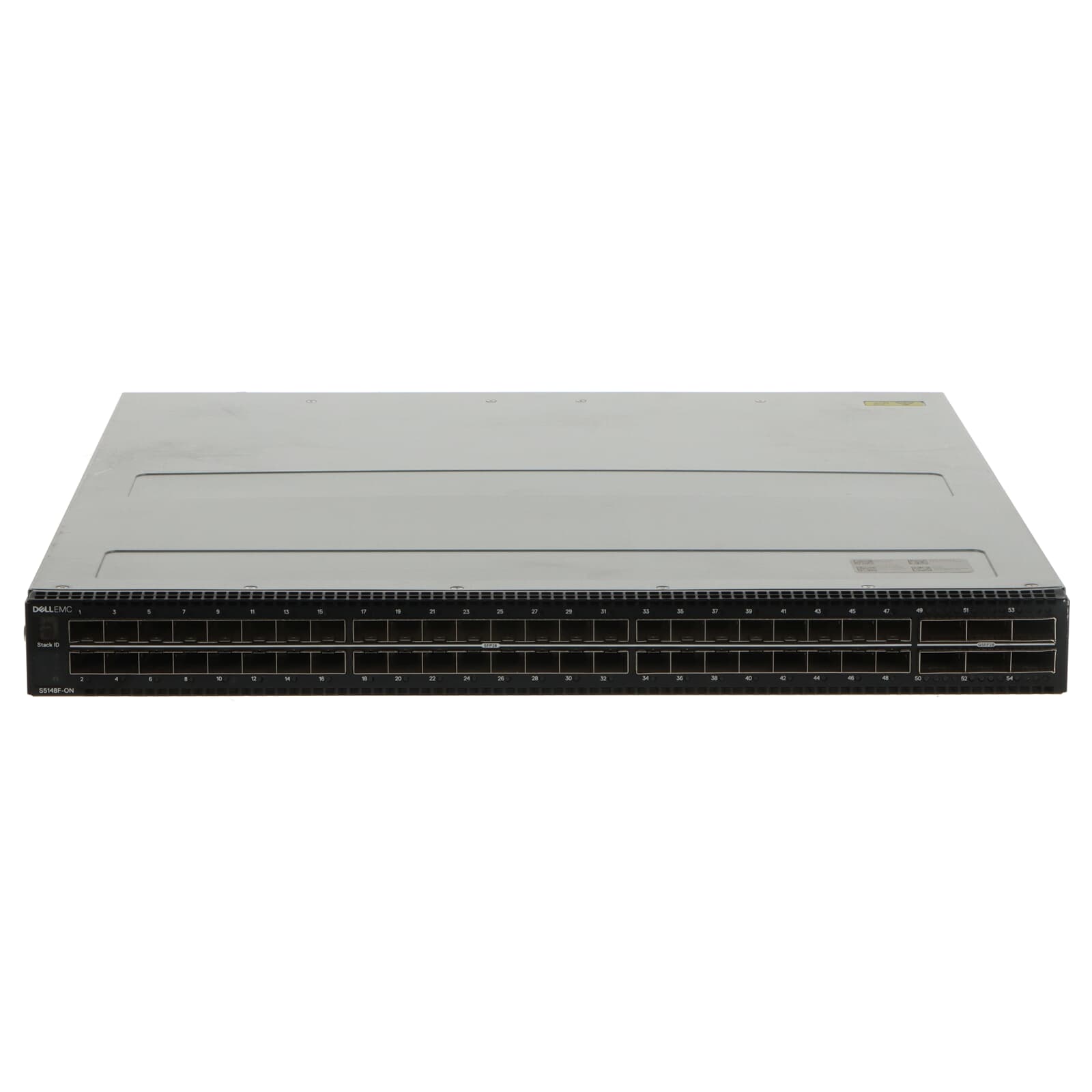

Dell EMC Networking S5148F-ON Series Switch 48x SFP28 25GbE 6x QSFP28 100GbE - 0DR3YR
refurbished
Item ID: 10010257
Technical specifications
Device type
Ethernet switch
Type of construction
Rack-mountable, 1U
Data transfer rate (Ethernet)
100 Gbps, 50 Gbps, 40 Gbps, 25 Gbps, 10 Gbps
Maximum Power Rating
525 watts
Number of fans
4
Power supply units
2
Max. number of power supply units
2
max. power
3.6 Tbps
Airflow
Front to Rear (Power Side Intake)
Performance features
ARP
Yes
CLI
Yes
CPS (Control Plane Services)
Yes
ERPM (Encapsulated Remote Port Mirroring)
Yes
FTP
Yes
Managebar
Yes
PTP (Precision Time Protocol)
Yes
Port Mirroring
Yes
RPM (Remote Port Mirroring)
Yes
SAI (Switch Abstraction Interface)
Yes
TFTP
Yes
VLAN
Yes
VXLAN
Yes
Connections
Network - Ethernet - QSFP28
6
Network - Ethernet - SFP28
48
USB
1
Management - Ethernet - RJ-45
1
Management - RS-232 - Micro-USB
1
Management - RS-232 - RJ-45
1
Note
Software version
Open Network Install Environment (ONIE)
