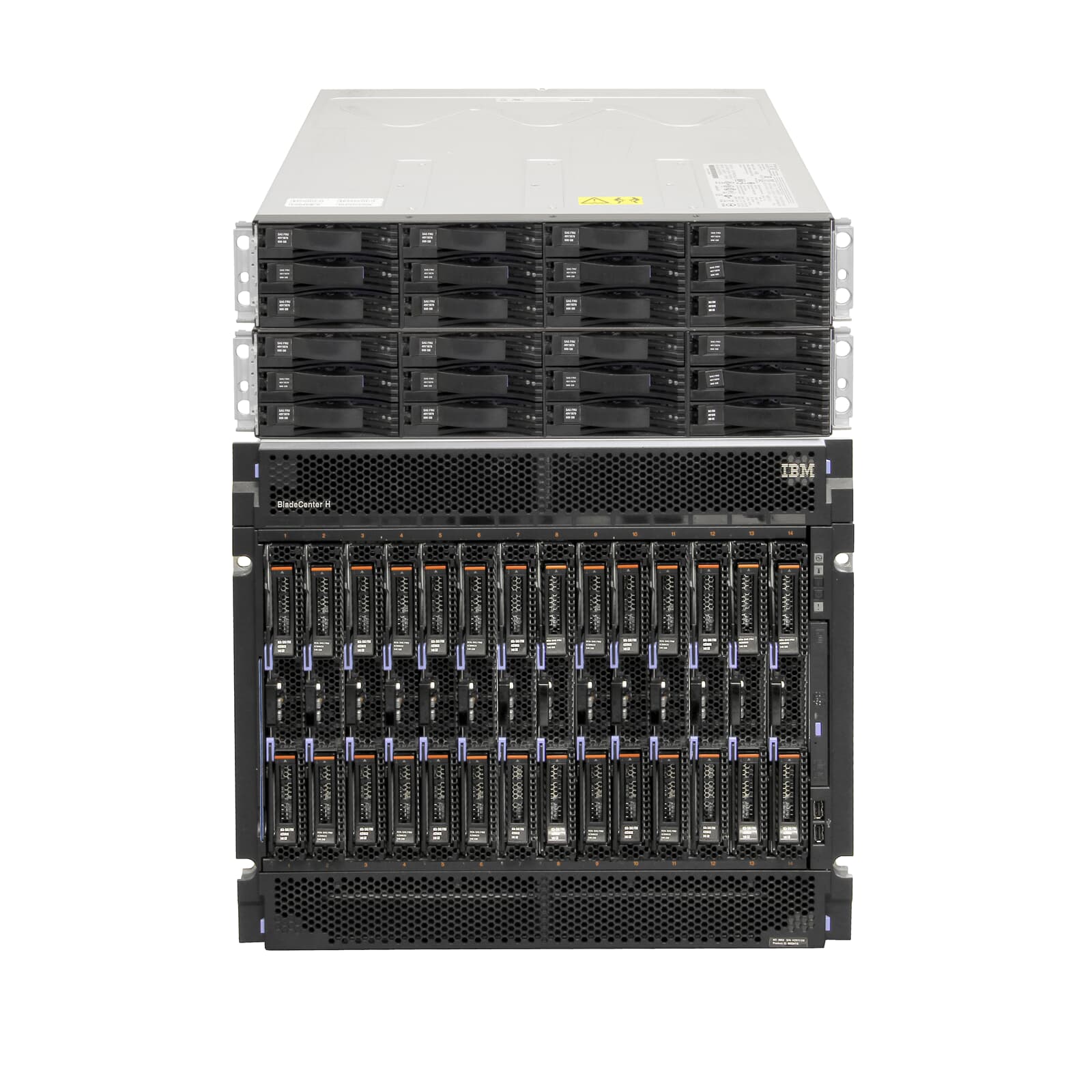

IBM BladeCenter H + 14x HS22 2x6C L5640 2.26 GHz 48GB 292GB + DS3512 14.4TB SAS

unfortunately sold out
48,999.00 €
incl. VAT, free express shipping within GER
Condition
refurbished
Item ID: 30000744
unfortunately sold out
Description
Technical specifications Blade Enclosure
Enclosure model
BladeCentre H
Enhanced
Yes
Number of slide-in units
14
Number of power supply units
4
Power per power supply unit (watts)
2980
Number of fans
2
Modules
IBM Advanced Management Module (AMM)
1
IBM 20Port 8G SAN Switch Module
1
Blade Enclosure connections
SFP slot
6
USB
2
Output - VGA
1
Management - Ethernet - RJ-45
1
Other drives
DVD-ROM
Yes
Installed servers
Quantity
14
Model
BladeCentre HS22
Technical specifications per server
Processor
Intel Xeon
Processor type
Xeon L5640
Number of CPUs
2
Number of CPU sockets
2
Processor clock (MHz)
2260
Number of cores per CPU
6
Working memory (GB)
48
Intel Smart Cache (MB)
12
Memory type
DDR3 RAM
Hard disc type
SAS/SATA SFF
Version
7870
Intel QPI Speed
5.86 GT/s
Hard disc server
146 GB SAS 6G 10k
2
Total capacity (GB)
292
max. hard discs
2
PCI devices onboard
Device_1
Brocadcom NetXtreme Gigabit Ethernet
Device_2
SAS/S-ATA RAID controller (RAID 0, 1)
Device_3
Emulex 8Gb FC Expansion Card (CIOv)
Expansion slots per server
CFFh slot
1
Blade server connections
USB
1
Technical specifications Storage 1
Device type
IBM System Storage DS3512
Number of power supply units
2
Data transfer rate
8 Gbps, 6 Gbps
Hard disc size in GB
600
Hard disc type
SATA/SAS 6G
Total capacity (gross) in TB
7,2
RAID level
0, 1, 3, 5, 6, 10
Number of installed hard drives
12
max. hard discs
12
Storage media Storage 1
600 GB SAS 6G 15k
12
Storage 1 connections
6Gb SAS port (SFF-8088)
6
Ethernet 1000Base-T - RJ-45
4
Fibre Channel (SFP)
8
PS/2 (administration)
2
Controller Storage 1
IBM DS3500 FC RAID Controller
2
Technical specifications Storage 2
Device type
IBM System Storage EXP3512
Number of power supply units
2
Data transfer rate
6 Gbps
Hard disc size in GB
600
Hard disc type
SATA/SAS 6G
Total capacity (gross) in TB
7,2
Number of installed hard drives
12
max. hard discs
12
Storage media Storage 2
600 GB SAS 6G 15k
12
Storage 2 connections
6Gb SAS port (SFF-8088)
6
Ethernet 100BASE-TX (management) - RJ-45
2
PS/2 (administration)
2
Controller Storage 2
IBM EXP3500 ESM Controller
2

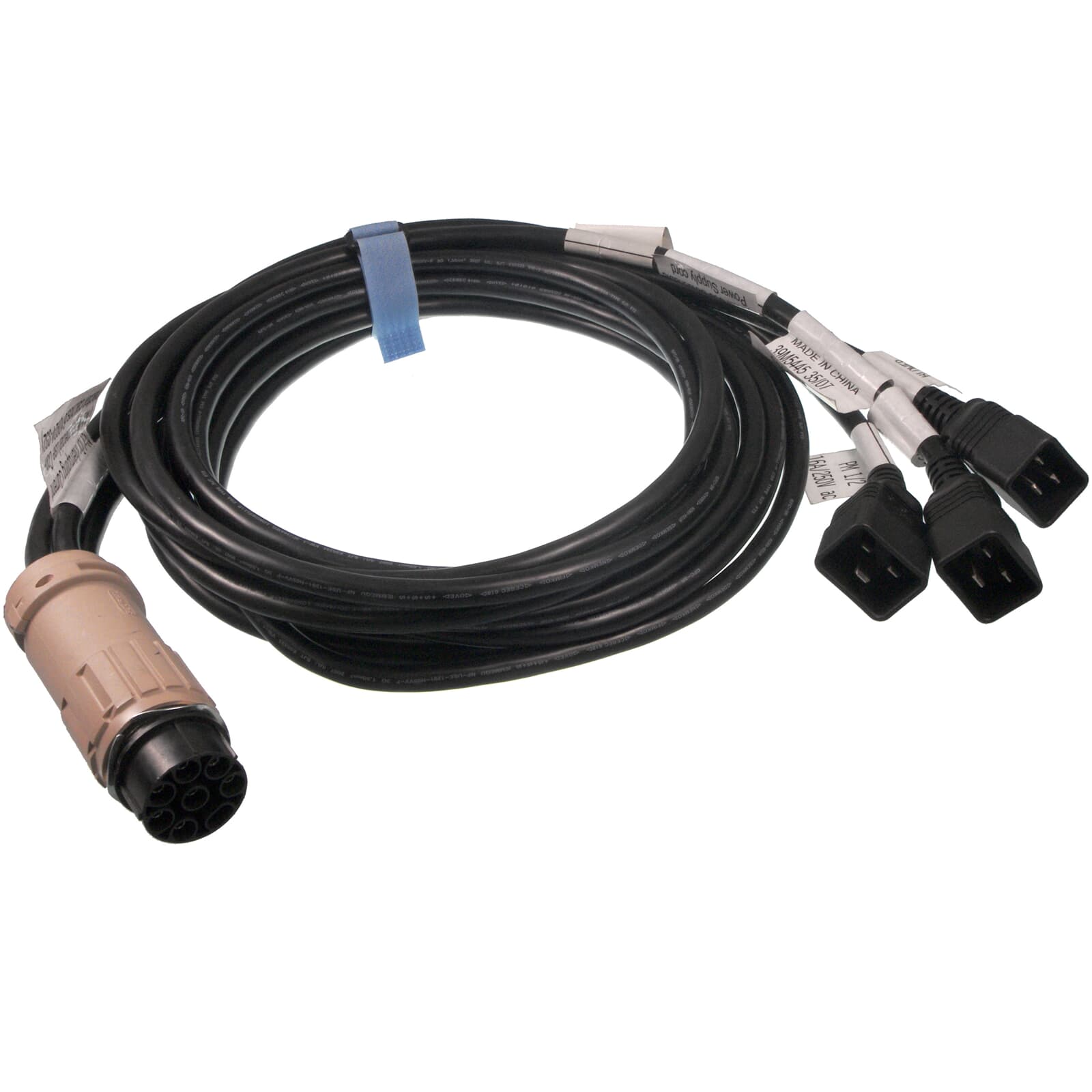

Power Distribution Unit (PDU)
Type
9306-RTP
Input connections
SOURIAU UTG0247P
Output connections
6x IEC-320 C19
