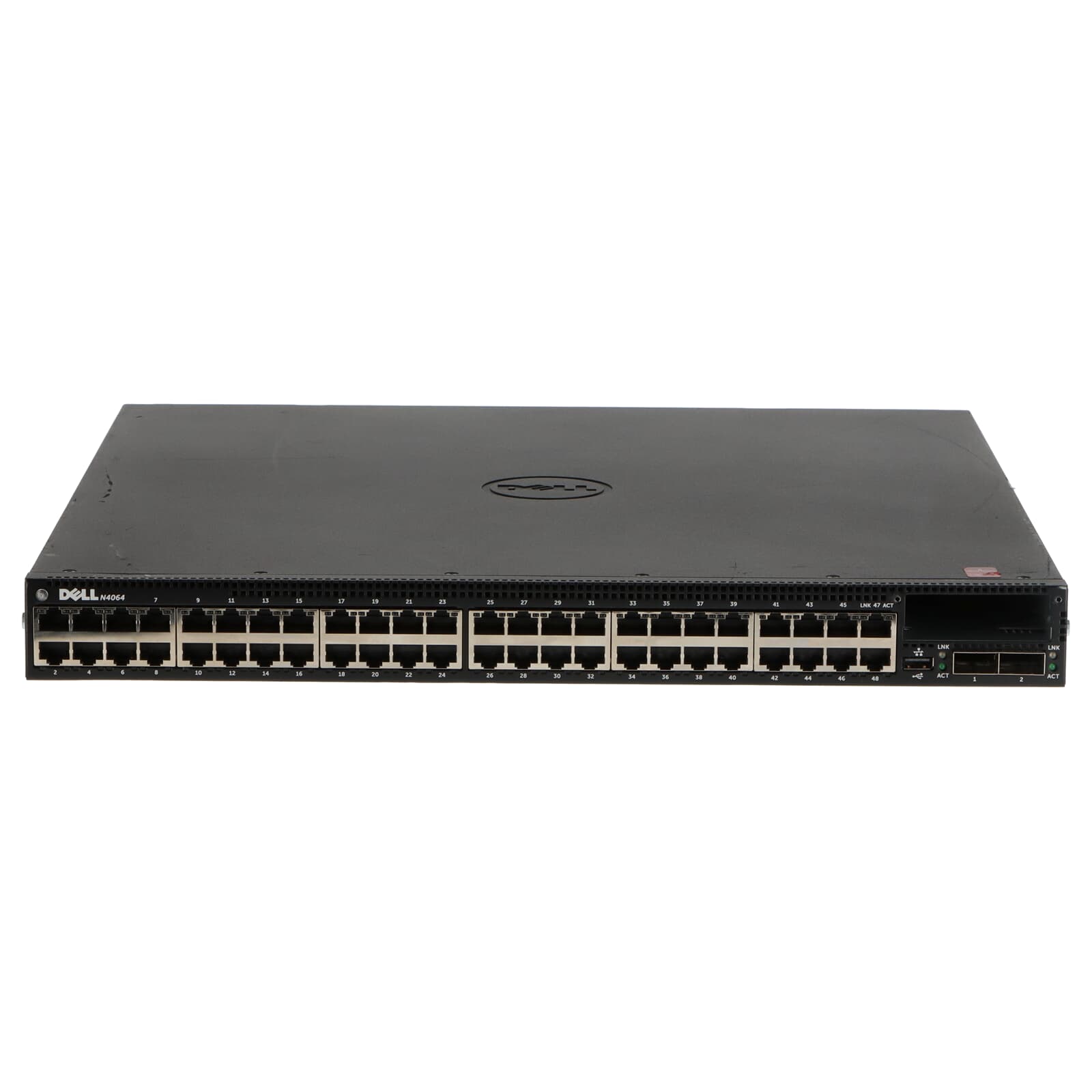

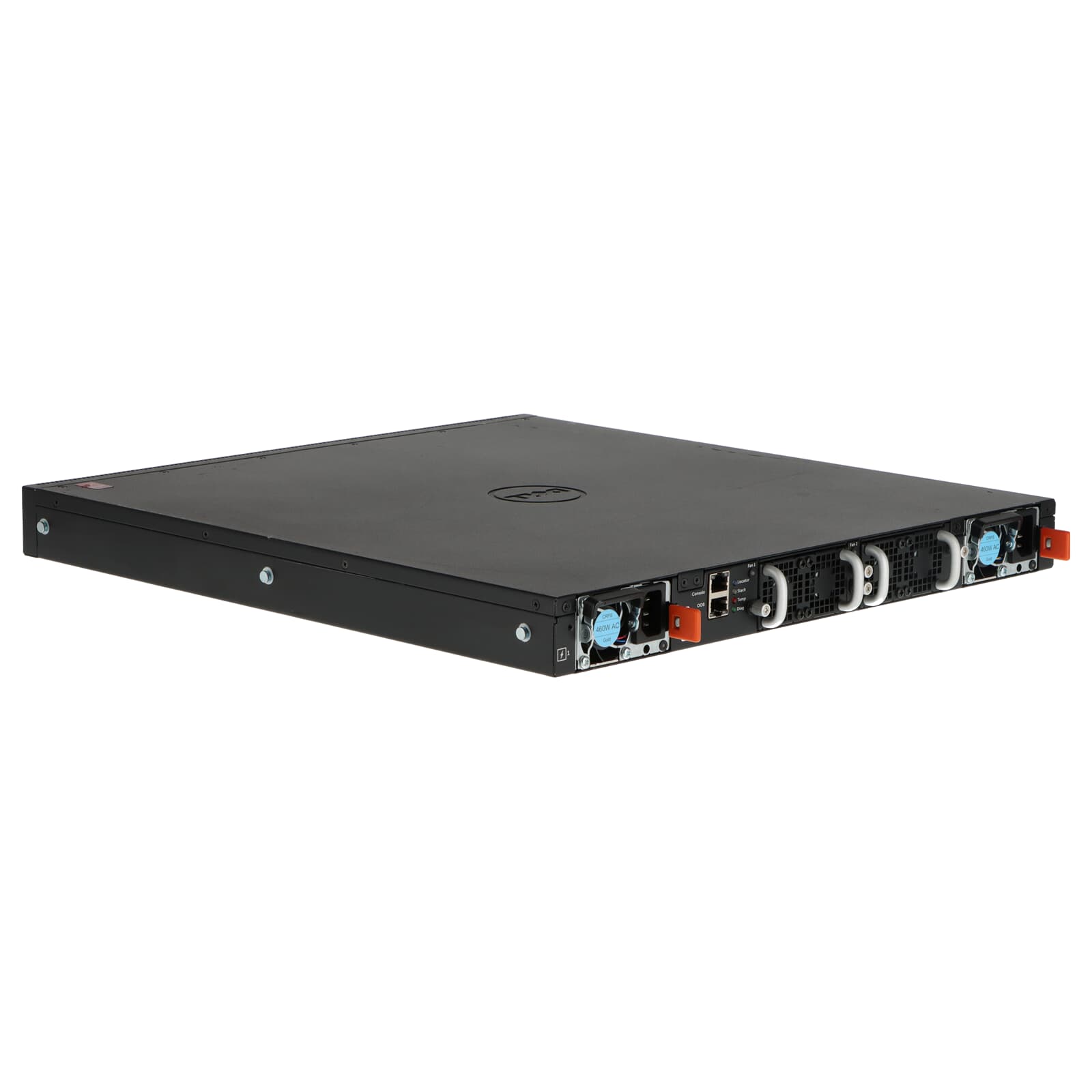

Dell Switch Networking N4064 48x 10GbE 2x QSFP+ 40GbE - 0KK3D4
refurbished
Item ID: 10006812
Technical specifications
Device type
Ethernet switch
Type of construction
Rack-mountable, 1U
Data Link Protocol
Gigabit Ethernet, 10GbE, 40GbE
Data transfer rate (Ethernet)
40 Gbps, 10 Gbps, 1 Gbps
Flash memory (MB)
256
Power supply units
2
RAM (MB)
2048
max. power
1.28 Tbps
Performance features
ARP
Yes
DHCP
Yes
Full duplex
Yes
HTTP
Yes
IGMP
Yes
IGMPv2
Yes
IGMPv3
Yes
Layer
3
MAC Address Table Size
130.000
Managebar
Yes
OSPF
Yes
OSPFv2
Yes
Port Mirroring
Yes
RADIUS
Yes
RIP v1
Yes
RIP v2
Yes
RMON 1
Yes
RMON 2
Yes
RMON 3
Yes
RMON 9
Yes
SNMPv1
Yes
SNMPv2c
Yes
SNMPv3
Yes
TACACS+
Yes
Telnet
Yes
Product certifications (IEEE)
802.1D Spanning Tree Protocol (STP)
Yes
802.1Q Tagged VLAN (frame tagging on all ports when VLANs are enabled)
Yes
802.1Qaz Enhanced Transmission Selection (ETS)
Yes
802.1Qbb Priority-Based Flow Control (PFC)
Yes
802.1p Class of Service (CoS) prioritisation
Yes
802.1s Multiple STP (MSTP)
Yes
802.1w Rapid STP (RSTP)
Yes
802.1x port-based authentication
Yes
802.3 10BASE-T Ethernet
Yes
802.3ab 1000BASE-T copper twisted pair Gigabit Ethernet
Yes
802.3ad Link Aggregation Control Protocol
Yes
802.3ae 10GBASE-KR backplane 10 Gb Ethernet
Yes
802.3ae 10GBASE-LR long range fibre optics
Yes
802.3ae 10GBASE-SR short range fibre optics
Yes
802.3u 100BASE-TX Fast Ethernet
Yes
802.3x full-duplex flow control
Yes
802.3z 1000BASE-LX long range fibre optics Gigabit Ethernet
Yes
802.3z 1000BASE-SX short range fibre optics Gigabit Ethernet
Yes
Connections
Network - Ethernet - QSFP+
2
Network - Ethernet 10GBase-T - RJ-45
48
USB
1
Management - Ethernet - RJ-45
1
Management - RS-232 - RJ-45
1
Modules
Stacking module slots (free)
1
